• 16 CLAMPING STATIONS
• P L C OPERATED
• SINGLE PUSH BUTTON STATION CHANGE
• FORWARD REVERSE ROTATION
• EMERGENCY STOP BUTTON
|
• PNEUMATIC OVERHEAD PANEL FLATTENER
• HYDRAULIC CLAMP TIGHTENER
• HEAVY DUTY CONSTRUCTION
• GUARDING TO SIDE AND REAR OF SYSTEM
• Avalilable in 2.7mts, 4.5mts 6.1mts and 7.2mts
|
|
The Clamps in each of the 8 Clamping Stations can be easily moved along the length of the system.
Each station can be fitted with 2 to 16 clamps depending on the width of the system.
The system can be built with clamp working widths from 900mm to 1300mm |
 |
|

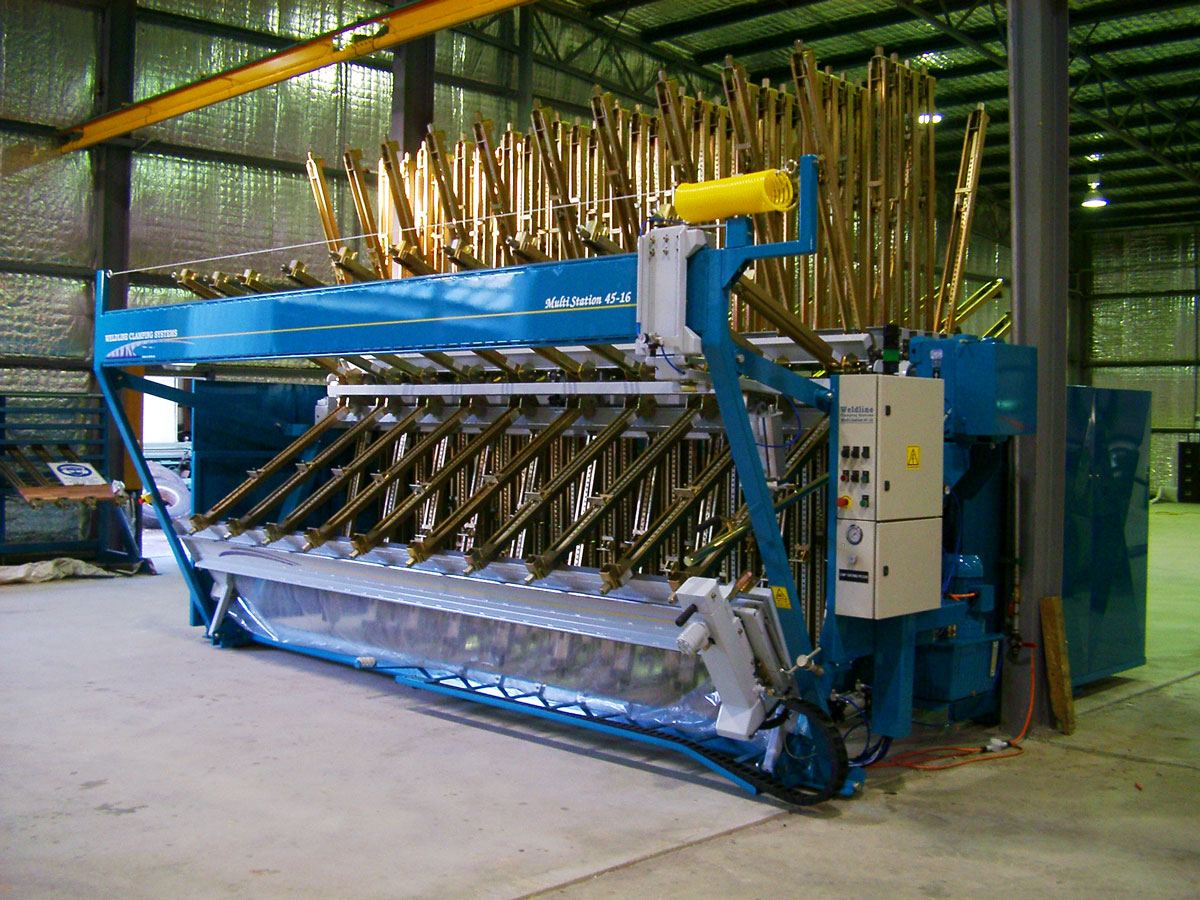

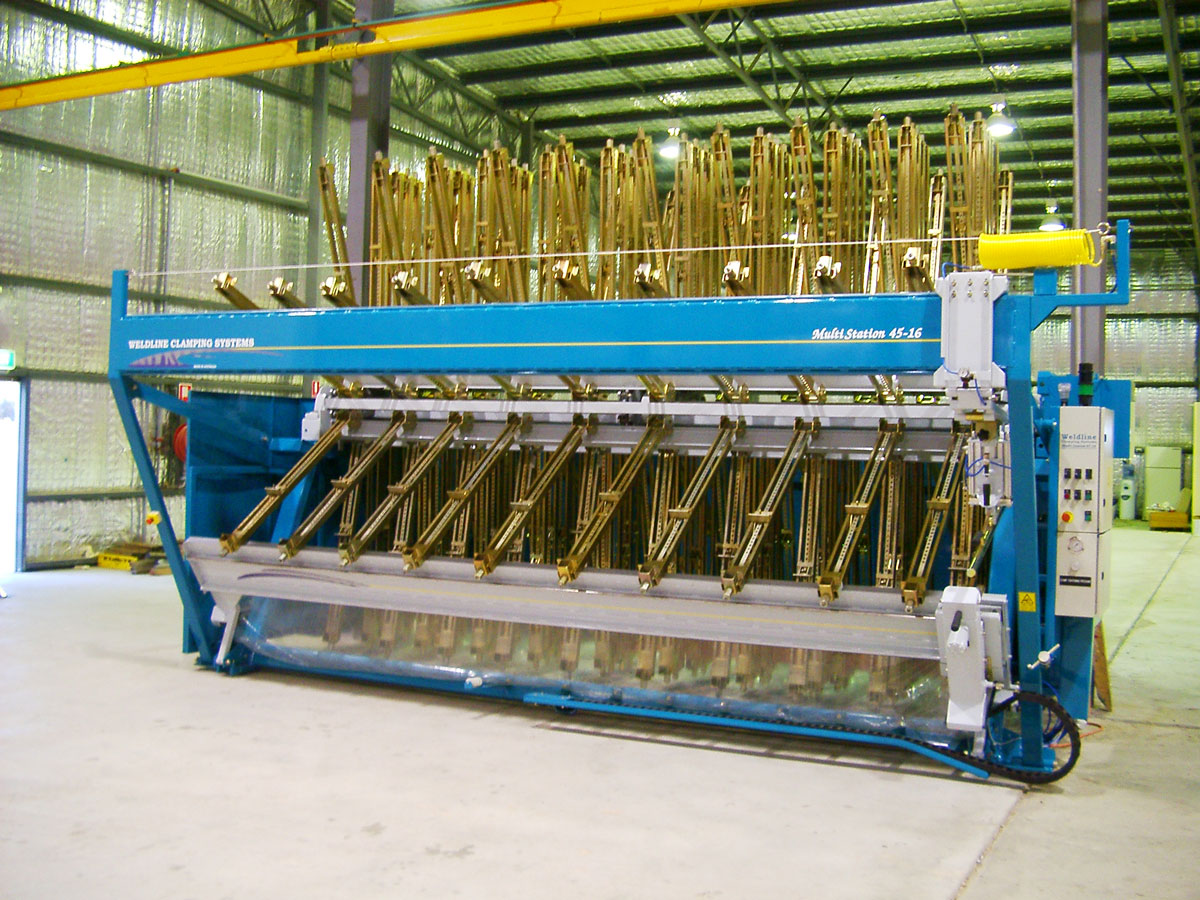

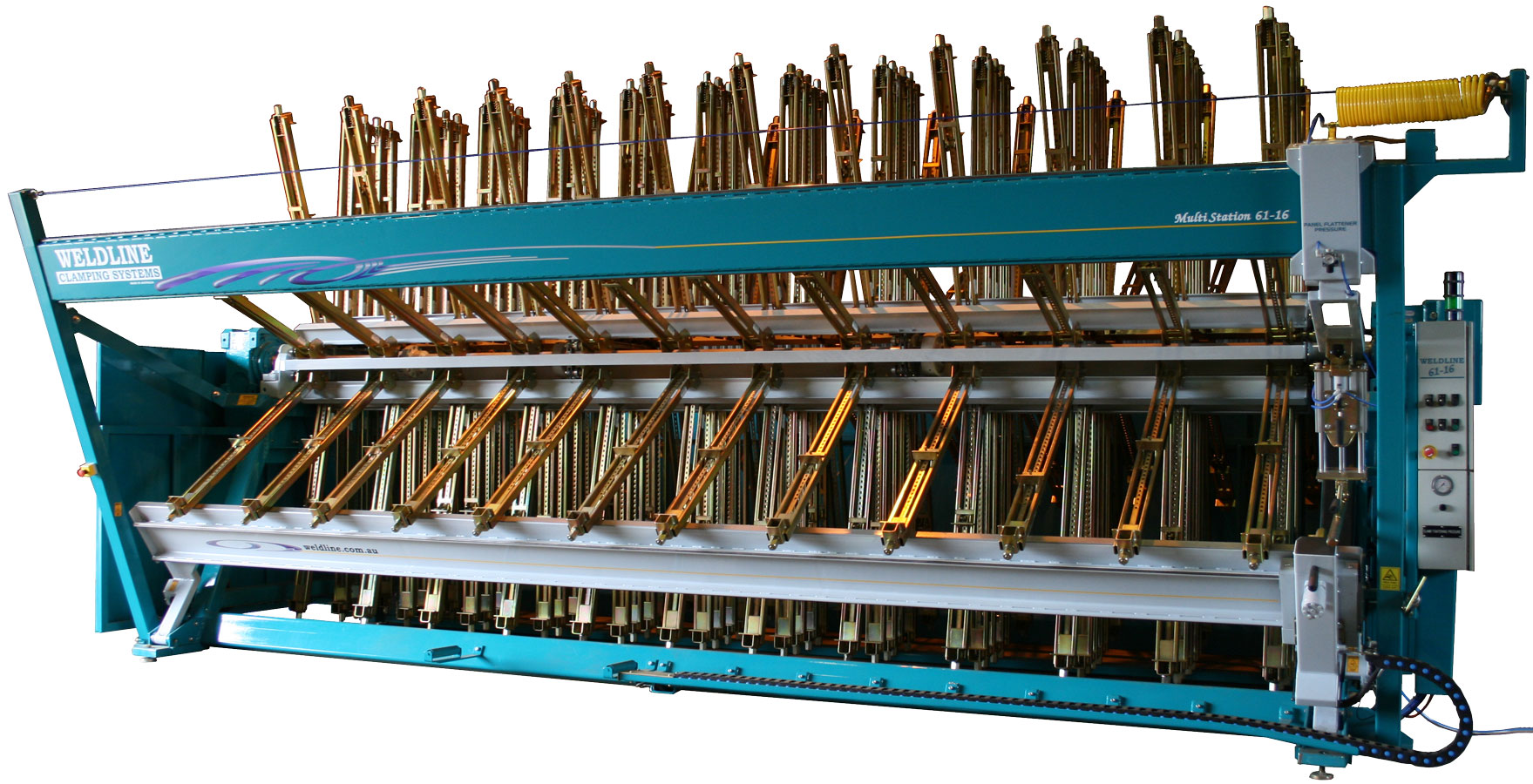

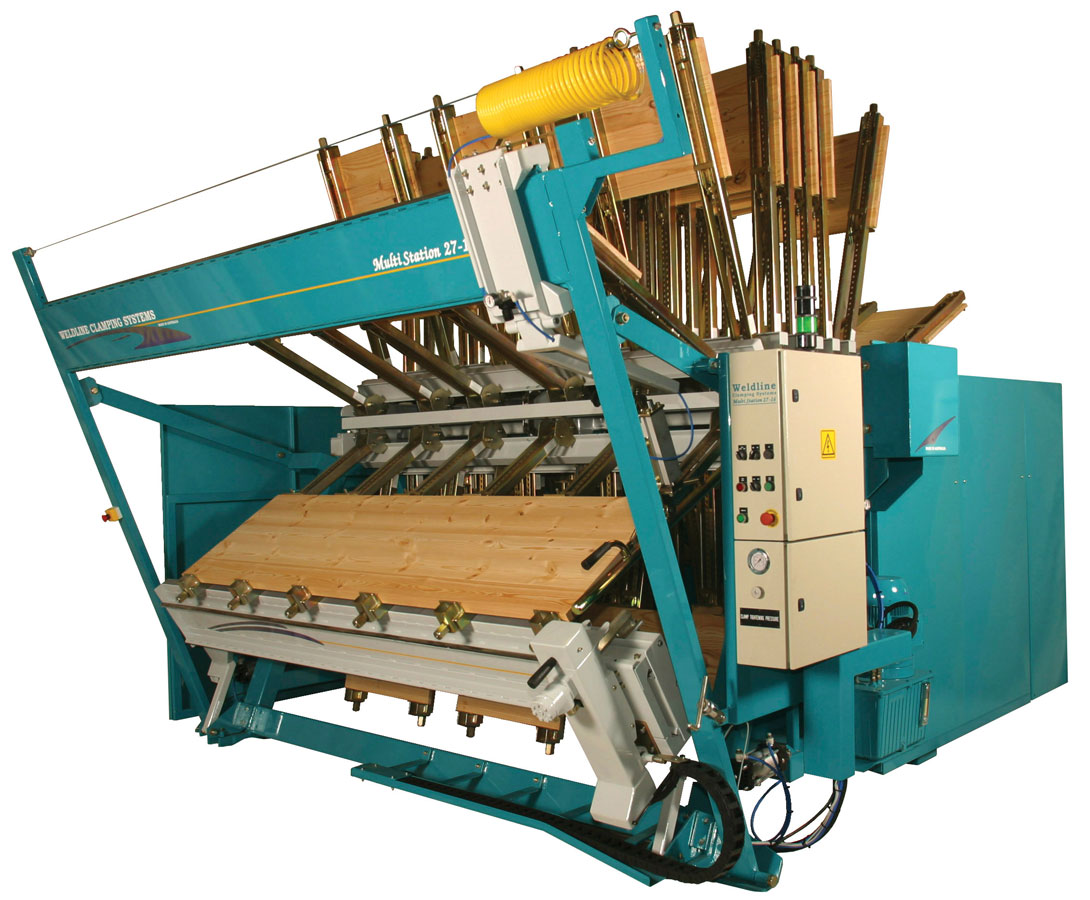

The 16 Station Rotating Clamping System features a fully programmable P L C unit that ensures smooth forward or reverse rotation.
The System is easy to operate with a single push button station change.
Their is an Emergancy Stop Button on the control panel and at the other end of the system. |
 |
|

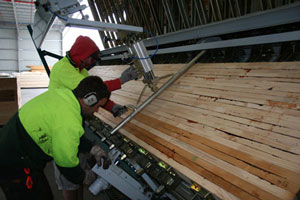

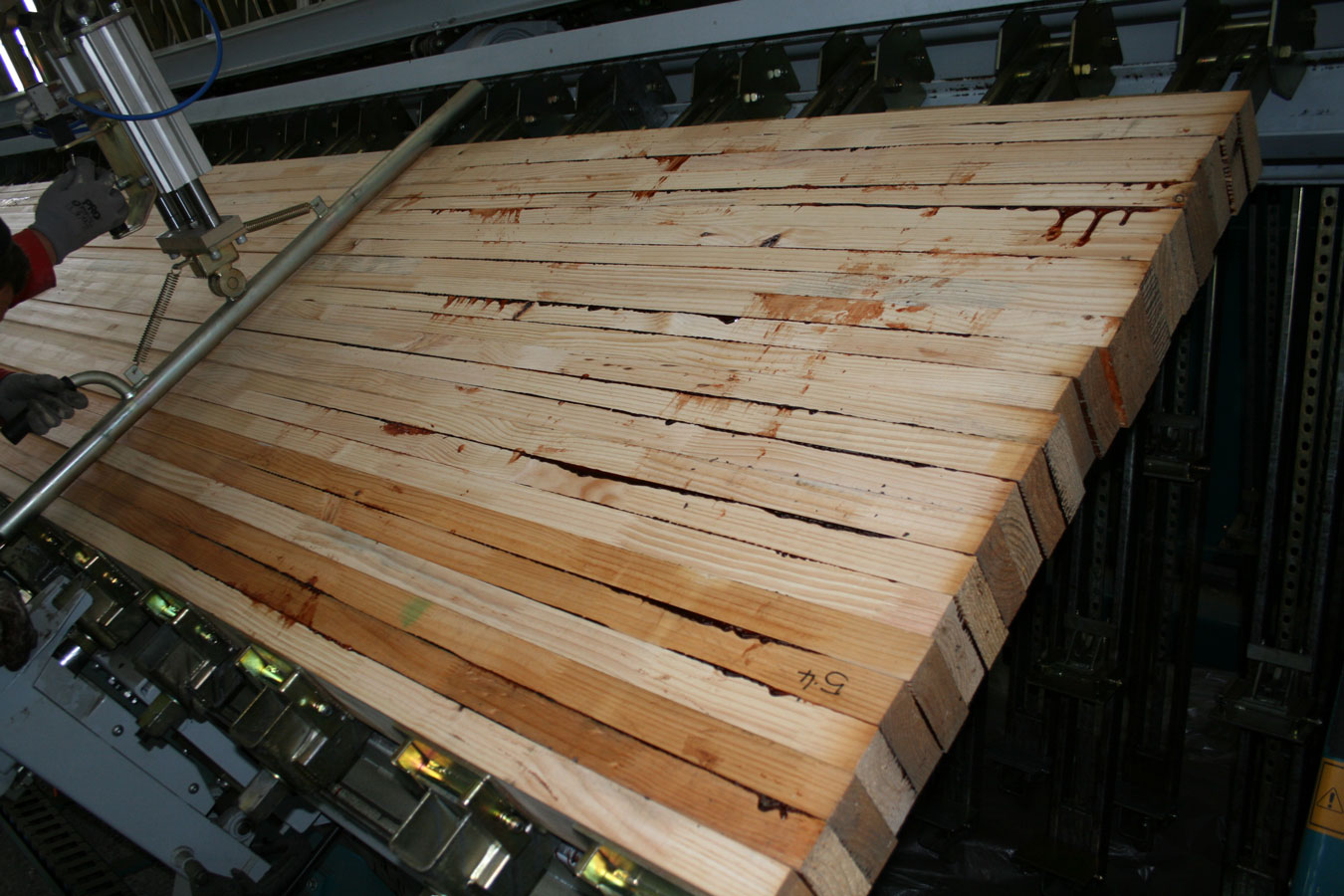

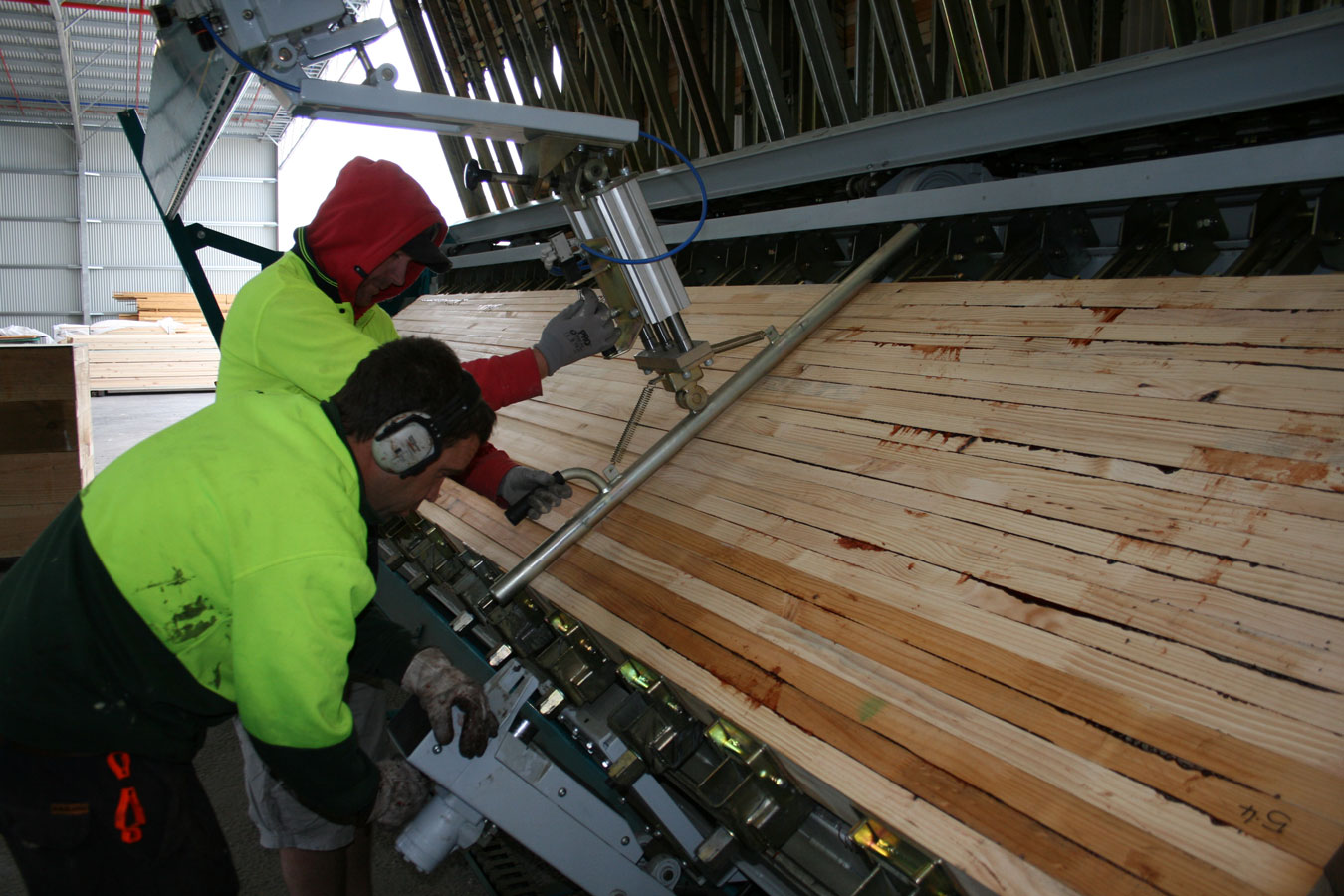

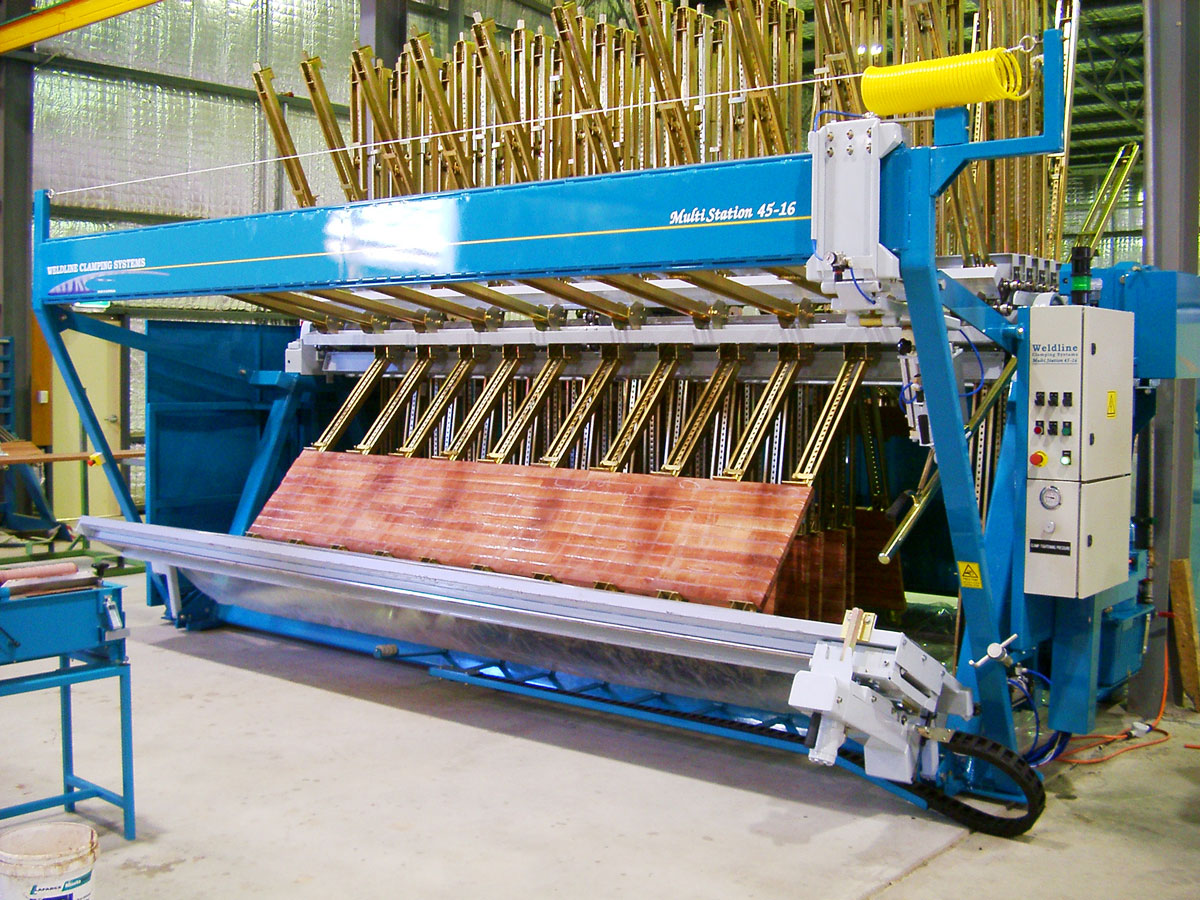

The Pneumatic Panel Flattener travels the length of the system and is designed to hold the work-piece flat against the clamps while they are being tightened.
The Pneumatic Panel Flattener pressure can be adjusted to suit different clamping requirements. |
 |
|
At WELDLINE we pride ourselves on manufacturing machinery that will last.
With its heavy duty construction and foot print design the Multi Station Rotating Clamping Systems is perfect for soft and hard woods.
Even when fully load with hard wood, the system will operate perfectly. |
|
|

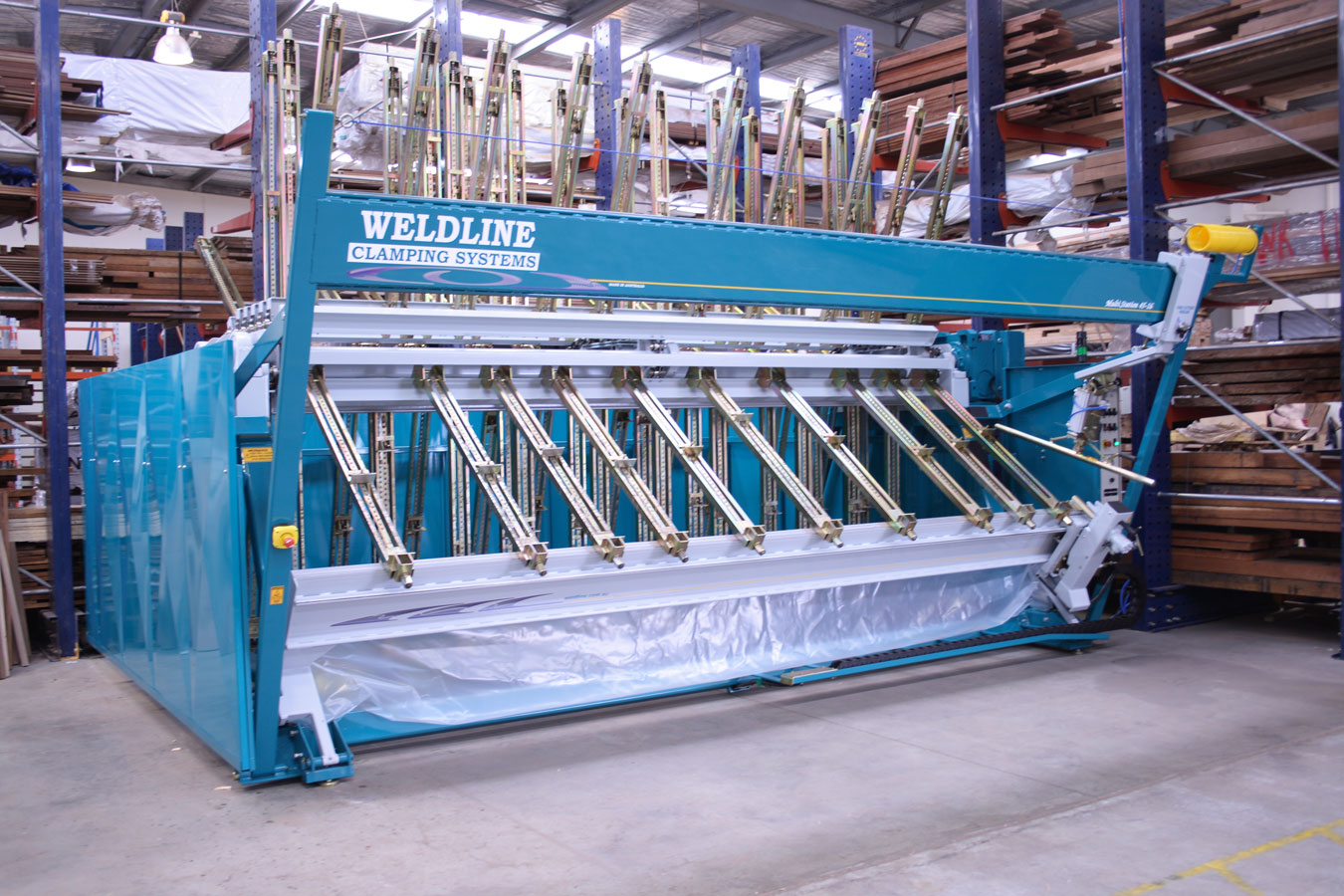

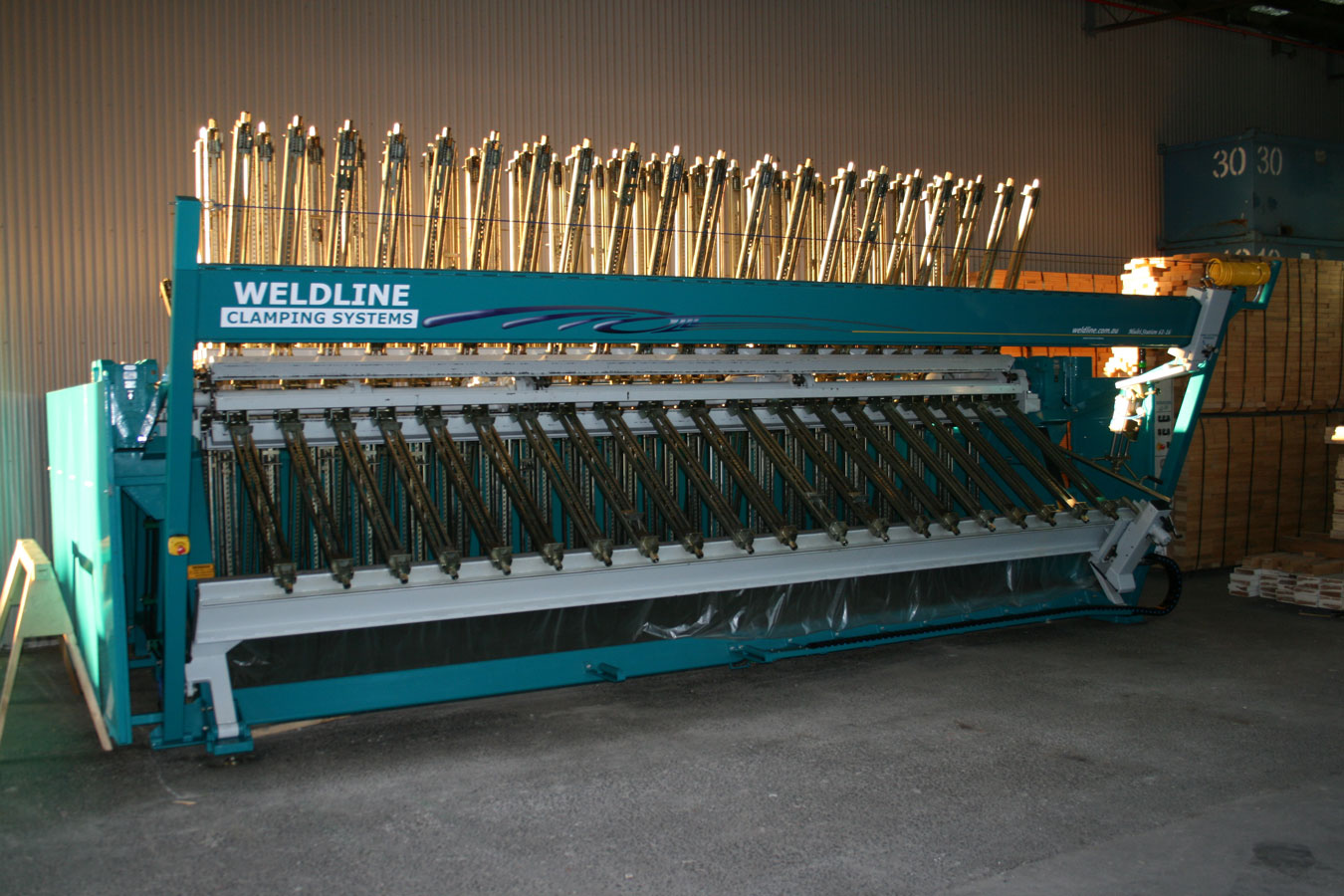

The Multi Station Rotating Clamping System is enclosed with Guarding to the rear and both sides.
When the System is being rotated a light and sirien sound to alert staff when the system is being rotated. |
 |
|
The 8 Station Rotating Clamping System is avalilable with working widths of 2.800 metres, 4.500 metres, 6.100 metres and 7.200 metres.
We can also custom manufacture the system to suit individual requirements. |
